Product Name:
|

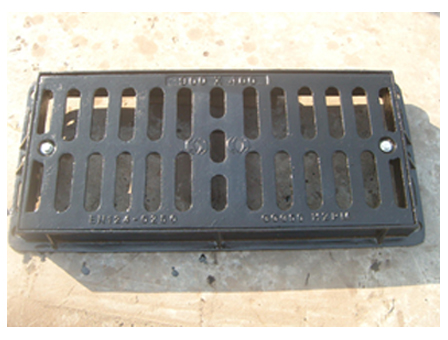

| Ductile iron gully grating Class C250 D400 |
|
| Describe： |
| Loading pressure |
Frame size(mm) |
Clear opening(mm) |
Depth(mm) |
Unit Weight(kg) |
| D400 |
900*450 |
785*305 |
100 |
51 |
| C250 |
900*410 |
785*305 |
75 |
42 |
|
|
| Class |
Apply to |
Bearing |
Remarks |
| EN124-A15 |
Areas where only passed by Pedestrians and Bicycles. |
15KN |
|
| EN124-B125 |
Footways, parking lot or similar areas. |
125KN |
HOT-SELLING |
| EN124-C250 |
The edge combinative area of vehicle road and the pavement. |
250KN |
|
| EN124-D400 |
Vehicle area and urban arterial road. |
400KN |
HOT-SELLING |
| EN124-E600 |
Shipping port and parking apron area. |
600KN |
|
| EN124-F900 |
Airplane taxiway and huge dock. |
900KN |
|
|
Specification：
Ductile iron; grating with frame
If you want to know more details, please send an email to us to sxsolid3@aliyun.com.
|
|
|
